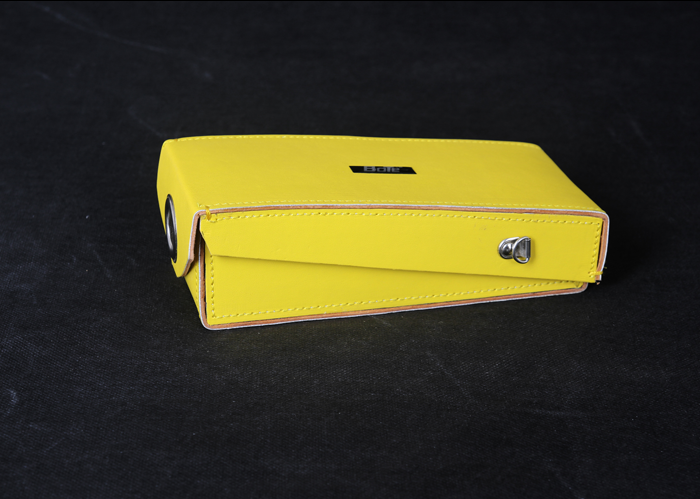

Bote  6000E ultrasonic overhead cables altimeter | 38 meters measuring 6 wires used to measure the overhead cables (line) height.These hand type ultrasonic measuring instrument is developed according to the patent.The altimeter Bote company adopts imported components using ultrasonic accurate detection of overhead power lines from the height of the ground has been main power company widely accepted all over the world, and agreed that is measuring aerial cable (line) the height of the safest, most quickly, the most effective way.Using Bote altimeter, line maintenance man can manual operation, the instantaneous measure the vertical distance of distribution wire to the ground.Can measure three or six cable (line) of the vertical distance, quickly concluded the cable (wire) between the distance.Can greatly reduce the labor intensity of the maintainer, improve work efficiency, and is an ideal tool to line maintenance man.
Product technical parameters:
Measuring range (cable minimum diameter 38 mm) 3 ~ 38 m
Measuring range (cable minimum diameter of 30 mm) 3 ~ 25 m
Measuring range (25 mm) cable minimum diameter 3 ~ 15 m
Measuring range (20 mm) minimum diameter cable 3 ~ 12 m
Measuring range (cable minimum diameter 15 mm) 3 ~ 8 m
Measuring range (cable minimum diameter 10 mm) 3 ~ 6 m
Measuring range (5.5 mm) cable minimum diameter 3 ~ 4 m
Working temperature range to 25 ℃ and 40 ℃
Measurement resolution (measuring range < 10 m) 5 mm
Measurement resolution (measuring range > 10 m) 10 mm
Measurement accuracy of 0.5% plus or minus 2 d
The minimum distance between cable 150 mm
Volume/weight 20 cm x 8 cm x 6 cm / 150 g
The characteristics and function
Rapid measurement: save time and money, at the same time, measuring 6 cable height (through the selector switch on the panel, can be measured from above, or from down to up measurement), up to 38 m.Automatic conversion (cross across) the vertical distance between cables.To measure the interior wall distance, to the pole, transformers and other targets of distance can be up to 25 meters
The latest cable altimeter 6000 e security: ultrasonic measuring principle, without access to the measured conductor
Latest cable altimeter 6000 e very accurate: the large measuring head, measurement accuracy is 0.1%, than the market existing high precision ultrasonic altimeter, measuring the highest (up to 38 m).To further improve the inhibition of spurious signals, making more stable performance.
The latest cable altimeter 6000 e simple and easy to use: 3 key design, simple and practical level bowl type measuring head, easy to aim at cable position measurement results and watch at the same time
Convenient check: the instrument have self-checking function can be easily allow the user to check the accuracy of the instrument to the metope can calibration instrument.Without adjusting and maintenance to ensure reliability
Small size: small volume, light weight, easy to carry or transport.
Range of application areas
Electric power, communication transmission cable, electric locomotive power cable and trolley buses, large industrial enterprises, the transmission of electric power cable, electric cable measurement.As well as the construction site, trees, tower level and height measurement.
